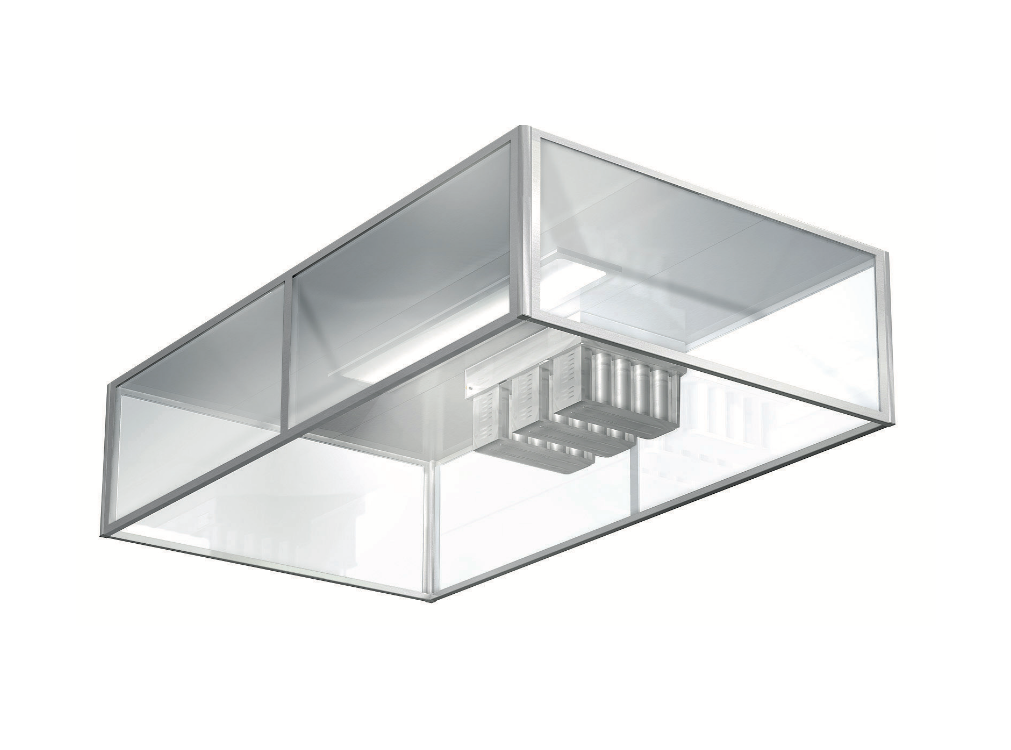

Exhaust air hood AF
Professional kitchen hood for equipment that generates grease, such as griddles, deep fryers and ranges.
- Factory-assembled hood with exhaust air
- Highly efficient cyclone filter for increased fire
safety and easier cleaning of exhaust air ducts - Sides in stainless steel sheet metal or laminated
glass - Recessed LED lighting in protection class IP 65
- Accessories: UV light purification and fire
extinguishing system
Description
Function
Contaminated air is drawn up into the hood towards the efficient cyclone filters. The filtered air is then discharged via the exhaust air duct.
Recessed lighting
The lighting fixture is completely recessed and is approved to protection class IP 65, which means that it is dust-tight and can be exposed to water. The fixture is equipped with energy-saving LED lighting (2000, 4000and 5000 lumens). The colour temperature is 4000 K and the colour rendering value RA(CRI) is 90.
The fixture is equipped with a 2 m extension cord with connector for easy further connection. Quick assembly with only one connection point. The fixture’s length and wattage is 710 mm / 20 W, 1310 mm / 44 W and 1610 mm / 55 W. The drive unit is equipped with support for DALI.

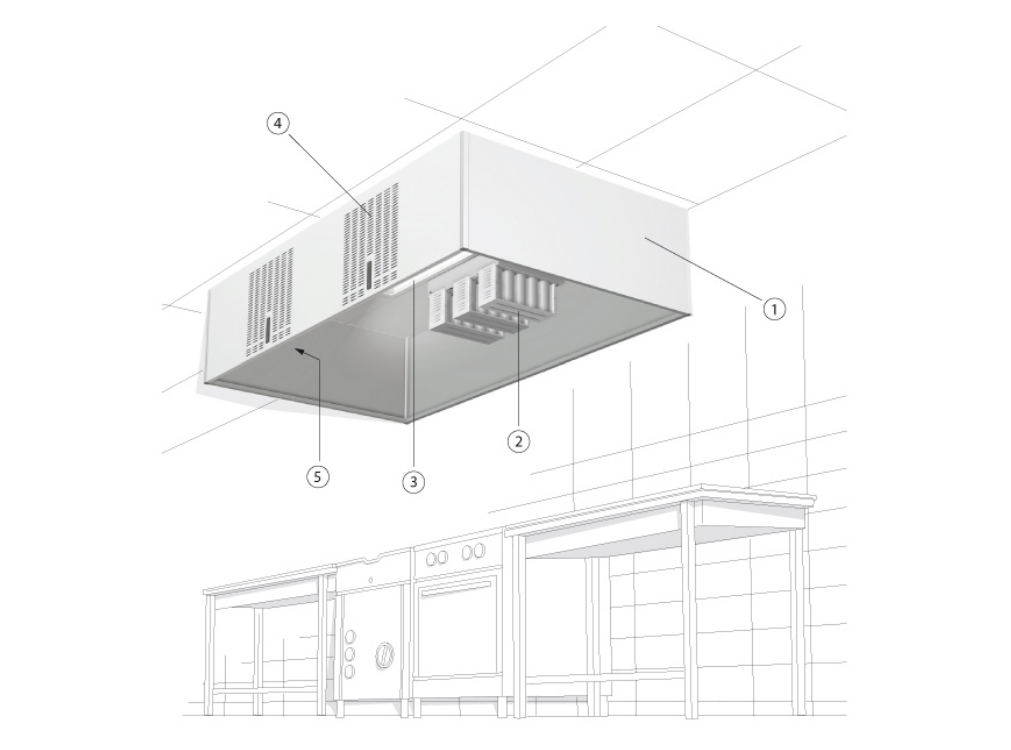

Design
The hood is manufactured with the desired number of sides and is delivered factory-assembled.
- Sides in stainless steel sheet metal or 3+3 mmlaminated glass
- Cyklotec cyclone filter with damper and pressure tap
- Recessed LED lighting in protection class IP 65
The efficient cyclone filter works equally well when the fan is operating at full or half speed
Dimensions and technical data

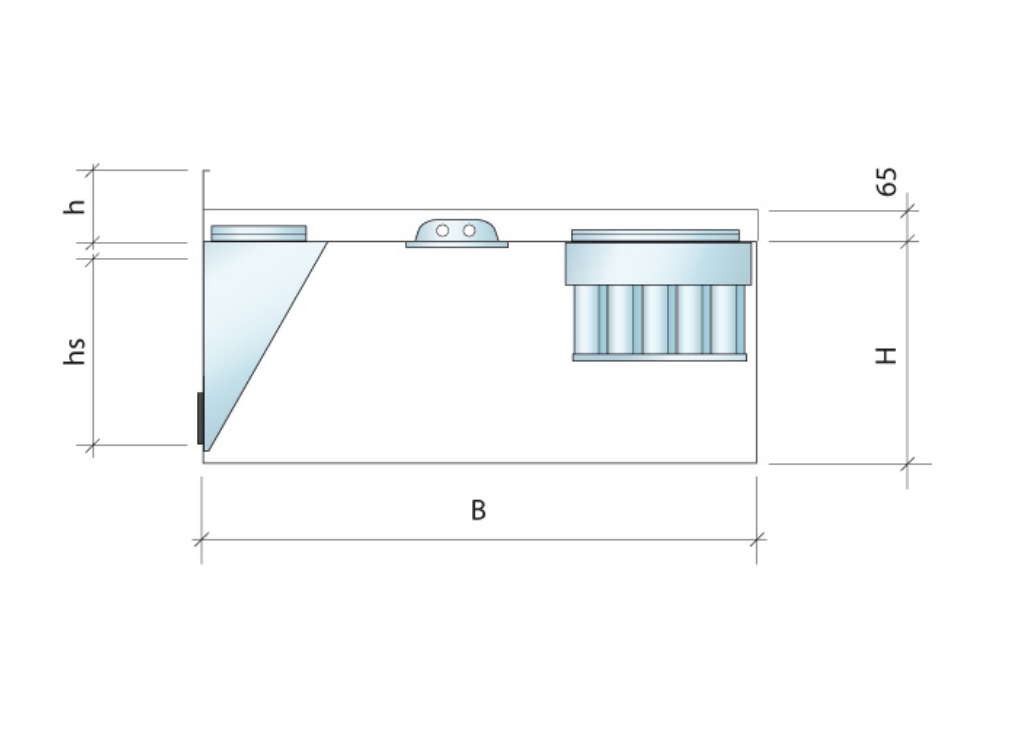

Dimensions
Height of hood H = 550 mm or 350 mm. The length and width may be freely selected.
If the length x depth is greater than 3000 x 1800 mm, the hood is delivered in two or more modules. The connections for control and exhaust air have spigot connections with rubber ring seals.

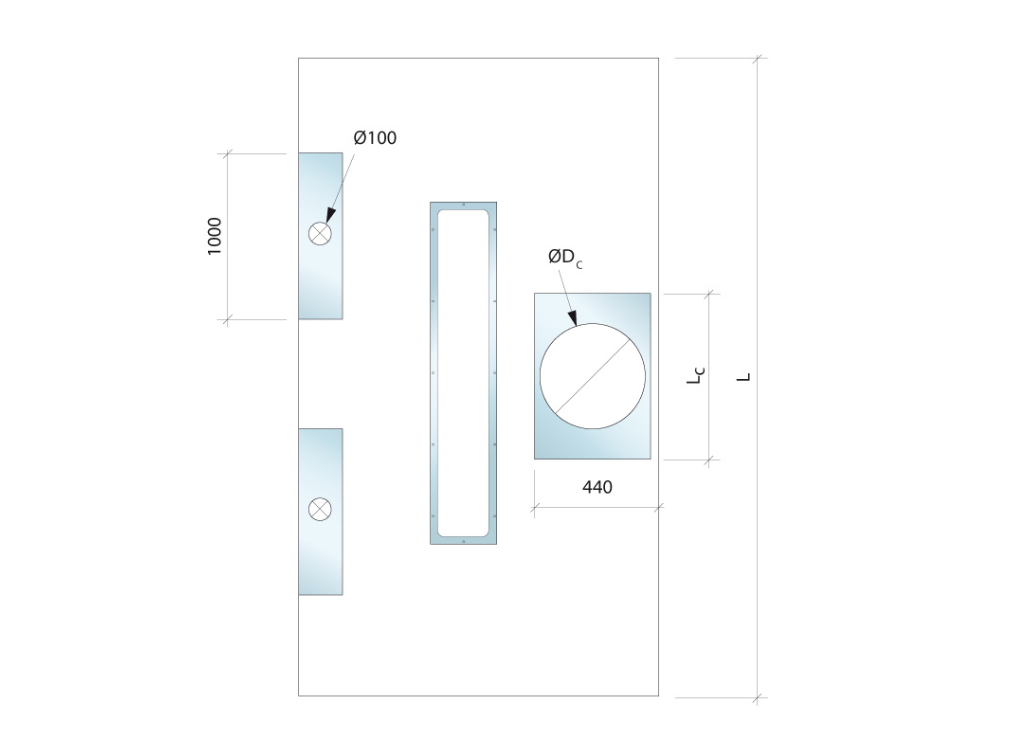

h = height of cover
H = height of hood
B = depth of hood
L = length of hood
ØDC = diameter exhaust air connection
LC = length of filter housing
Exhaust air
The number of filter cassettes in the Cyklotec cyclone filter is determined by the exhaust air flow. For effective separation, a pressure drop of at least 20 Pa across the Cyklotec filter is recommended, which corresponds to the lower exhaust air flow rate in the table below. At the higher air flow, the pressure drop is 80-90 Pa.
| Exhaust air l/s | Number of filter cassettes | ØDC mm | LC mm |
|---|---|---|---|
| 60 - 150 | 1 | 250 | 295 |
| 120 - 250 | 2 | 315 | 400 |
| 170 - 340 | 3 | 400 | 620 |
| 215 - 430 | 4 | 400 | 840 |
| 250 - 520 | 5 | 400 | 1060 |
Specifications
Specifications
AF – R – 4 – 2200 x 1200 x 550 – 1 x 400 – 400 l/s.
Example description text
Exhaust air hood AF, manufactured by Acticon, with sides in brushed stainless steel sheet metal (or, alternatively, laminated glass).
Exhaust air and recessed LED lighting in protectionclass IP 65. Exhaust air connections with damper and pressure tap.
Cyklotec cyclone filter with 100% separation of particles; 7 µm at recommended flow and 9 µm at half flow. Cover from upper edge of hood to room ceiling.
| R = Stainless steel sheet metal G=Laminated glass | R |
| Number of sides | 4 |
| Length in mm | 2200 |
| Depth in mm | 1200 |
| Height in mm | 550 |
| Exhaust air connections: number x diameter | 1x400 |
| Exhaust air in l/s | 400 l/s |
