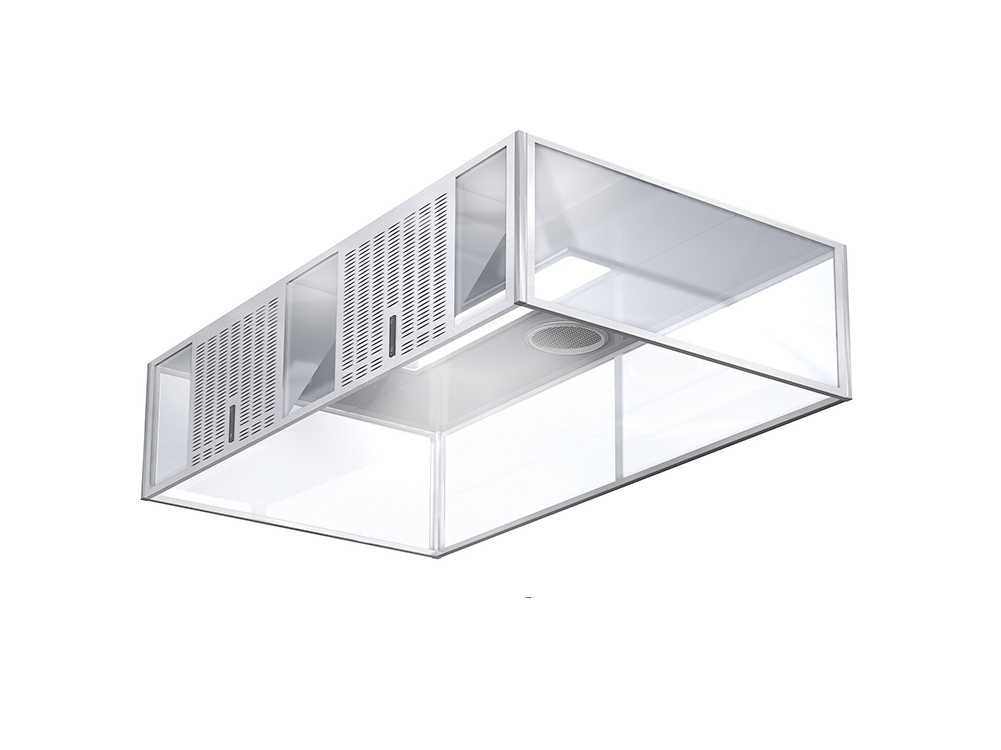

Dishwashing hood ADT with supply air
Professional kitchen hood for dishwashing areas.
- Factory-assembled hood with supply air, control air and exhaust air
- Elegant recessed supply air terminal and removable exhaust air grille
- Control air for enhanced efficiency in areas with high loads of heat and steam
- Sides in stainless steel sheet metal or laminated glass
- Recessed LED lighting in protection class IP 65
Description
Funktion
Fresh air is supplied to the kitchen via the hood’s supply air terminal. With the adjustable comfort nozzle located at the front of the air terminal, kitchen personnel can direct a small amount of air in the desired direction. Heat and moisture are sucked up towards the exhaust air grille in the hood’s ceiling and then out into the exhaust air duct.
Recessed lighting
The lighting fixture is completely recessed and approved to protection class IP 65, which means that it is dust-tight and can be exposed to water. The fixture is equipped with energy-saving LED lighting (2000, 4000 and 5000 lumens). The colour temperature is 4000 K and the colour rendering value RA(CRI) is 90.
The fixture is equipped with a 2 m extension cord with connector for easy further connection. Quick assembly with only one connection point. The fixture’s length and wattage is 710 mm / 18 W, 1310 mm / 36 W and 1610 mm / 45 W. The drive unit is equipped with support for DALI.

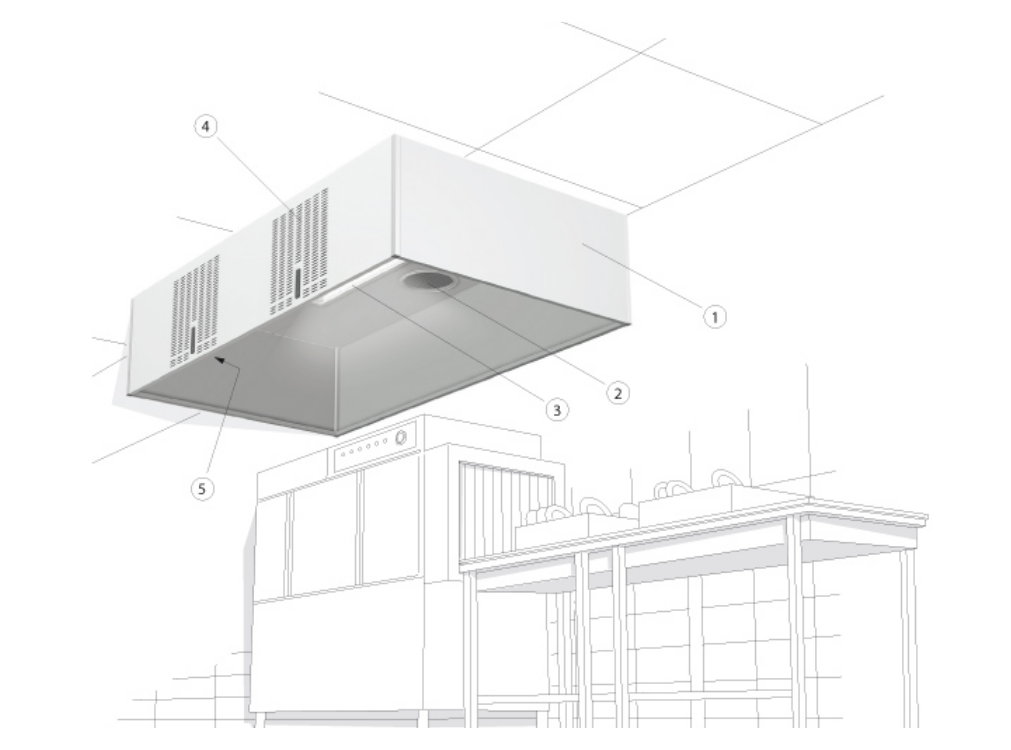

Design
The hood is manufactured with the desired number of sides and is delivered factory-assembled.
- Sides in stainless steel sheet metal or 3+3 mm laminated glass
- Exhaust air grille in size Ø200-400 mm
- Recessed LED lighting, protection class IP 65
- Integrated supply air terminals with damper, pressure tap, inspection hatch and adjustable
comfort nozzle - Control air
The air terminals are discreetly integrated into the sides of the hood. The technology is concealed behind the front
Dimensions and technical data
Dimensions
Height of hood H = 550 mm or 350 mm.
The length and depth may be freely selected. If the length x depth is greater than 3000 x 1800 mm, the hood is delivered in two or more modules. The connection for supply and exhaust air has a spigot connection with a rubber ring seal.

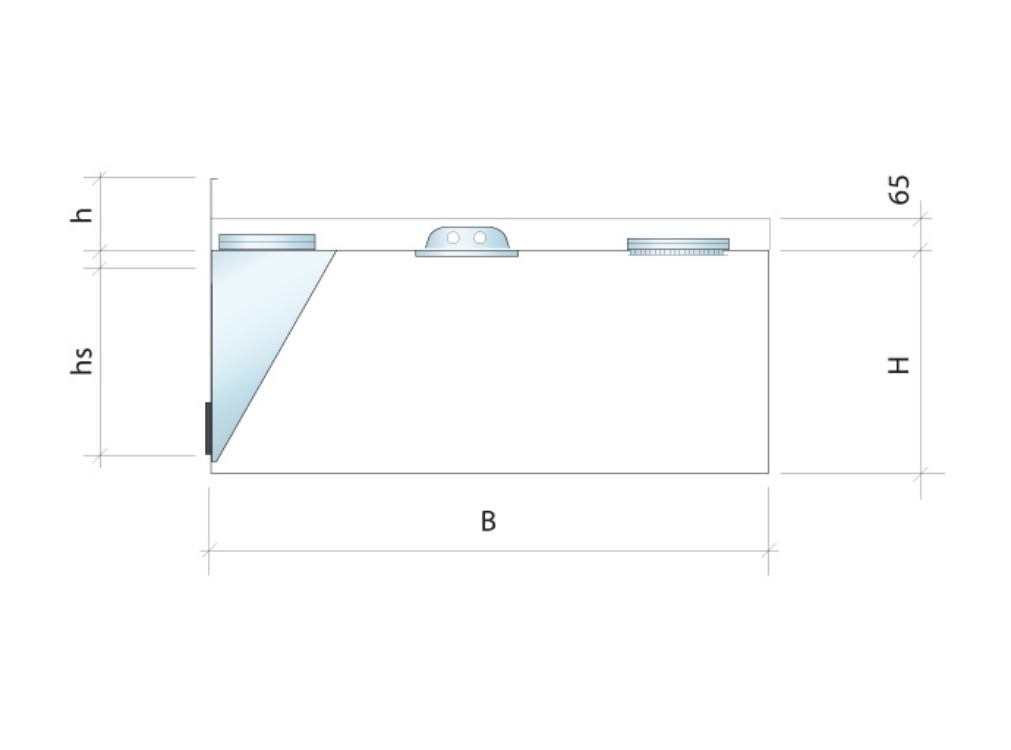

h = height of cover
H = height of hood
B = depth of hood
L = length of hood
hs = height of supply air distributor

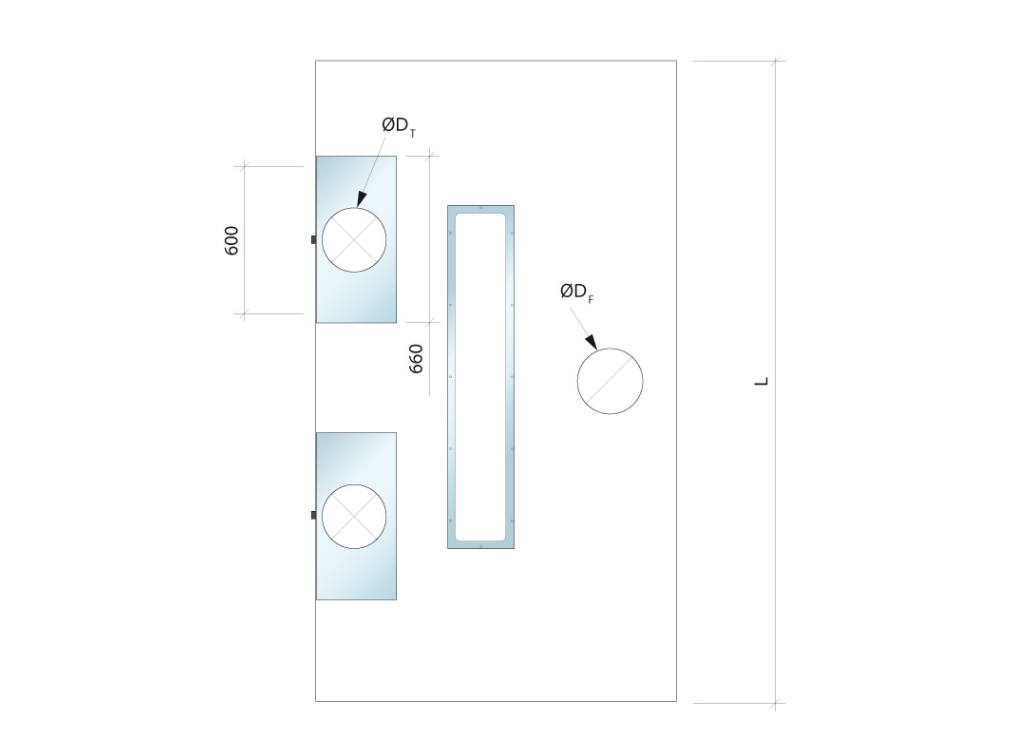

ØDT = diameter supply air connection
ØDF = diameter exhaust air connection
Exhaust air
The table shows suitable diameters ØDF for the exhaust air connection at different exhaust air flows.
| Exhaust air l/s | Exhaust air connection ØDF |
|---|---|
| 0 - 100 | 200 |
| 100 - 150 | 250 |
| 150 - 250 | 315 |
| 250 - 420 | 400 |
Supply air
The table shows how much air that can be supplied per supply air distribution unit. Each air terminal, within its flow range, is delivered set to a static pressure drop of 20 Pa.
| Supply air l/s | Height of hood | Height of distributor hs | Connection ØDT mm |
|---|---|---|---|
| 50 - 110 | 350 | 260 | 200 |
| 50 - 110 | 550 | 260 | 200 |
| 90 - 195 | 550 | 460 | 250 |
Description text suggestion
Specifications
Specifications
ADT–G–4–2700x1100x550–2x250–1x400+320 l/s–350 l/s.
Proposal for description text
Dishwashing hood ADT, manufactured by Acticon, with sides in laminated glass (or, alternatively, brushed stainless steel sheet metal).
Supply, control and exhaust air, and recessed LED lighting in protection class IP 65.
Supply air connections with damper and pressure tap. Integrated supply air terminal with adjustable comfort nozzle.
Sleeve coupling with removable grille for exhaust air. Cover from upper edge of hood to room ceiling.
| R=Stainless steel sheet metal G=Laminated glass | G |
| Number of sides | 4 |
| Length in mm | 2700 |
| Depth in mm | 1100 |
| Height in mm | 550 |
| Supply air connections: number x diameter | 2x250 |
| Exhaust air connection: number x diameter | 1x400 |
| Supply air in l/s | +320 l/s |
| Exhaust air in l/s | 350 l/s |
