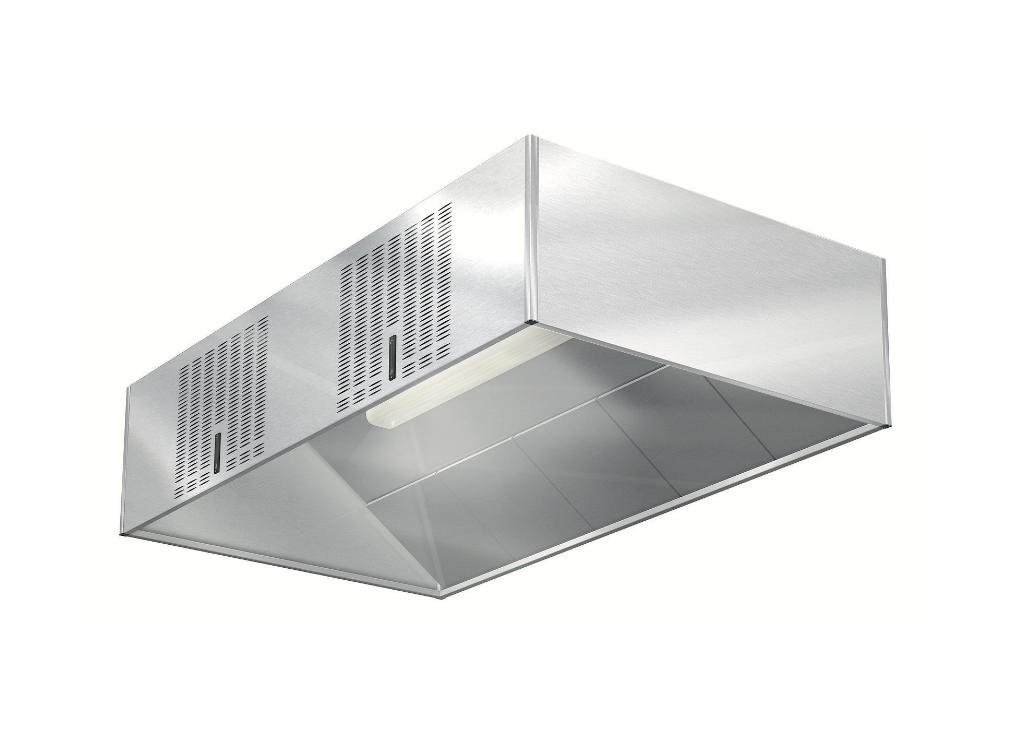

Condensation hood with supply air AKT
Professional kitchen hood for equipment that gives off steam and heat, such as boiling pots and dishwashers.
- Factory-assembled hood with supply and exhaust air
- Elegant recessed supply air terminal
- Efficient and removable condensation separator
- Sloping inner ceiling to prevent condensation from dripping
- Sides in stainless steel sheet metal
- LED lighting with DALI control
Description
Function
Fresh air is supplied to the kitchen via the hood’s supplyair terminal. With the adjustable comfort nozzle located at the front of the air terminal, kitchen personnel can direct a small amount of air in the desired direction. Steam and excess heat are sucked up into the hood, where the condensed water is separated. The dehumidified exhaust air is discharged via the exhaust air duct. The sloping ceiling prevents condensation from dripping from the hood.
External lighting
The external lighting fixture is approved to protection class IP 65, which means that it is dust-tight and can be exposed to water. Supplied with LED lighting with colour temperature 4000 K and DALI control.

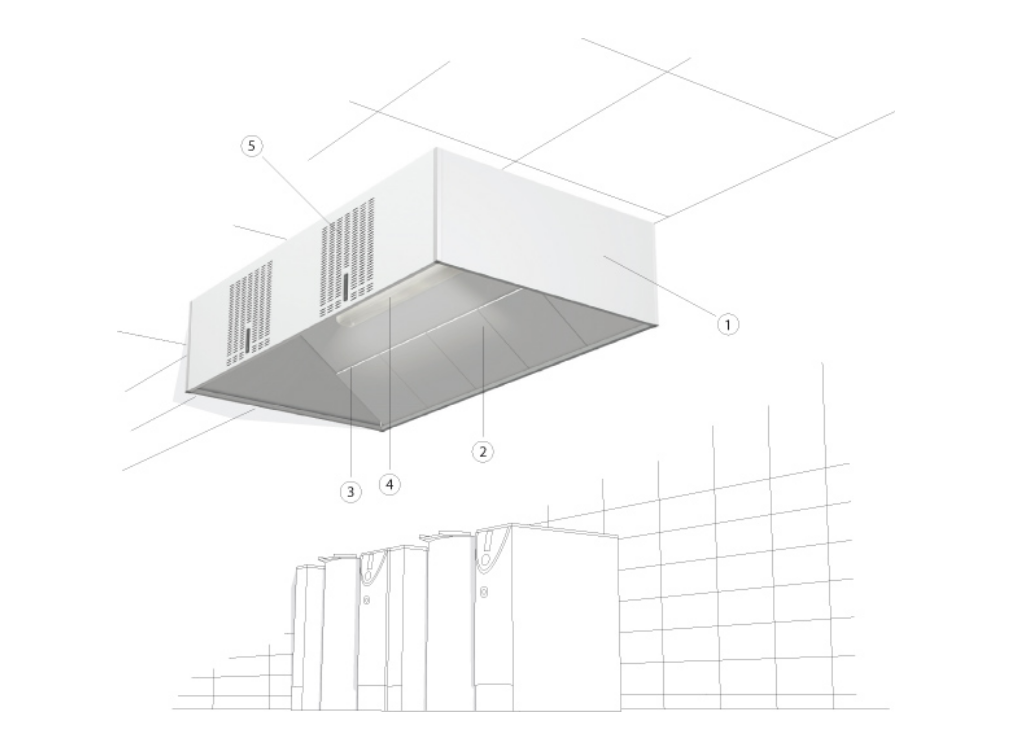

Design
The hood is delivered factory-assembled with four sides.
- Sides in brushed stainless steel sheet metal
- Condensation separator in stainless steel sheet
metal - Pressure tap exhaust air
- LED lighting, protection class IP 65
- Integrated supply air terminal with damper, pressure tap, inspection hatch and adjustable comfort nozzle. The air terminals are placed on the long sides of the hood.
The condensation separators are easy to remove and clean
Dimensions and technical data

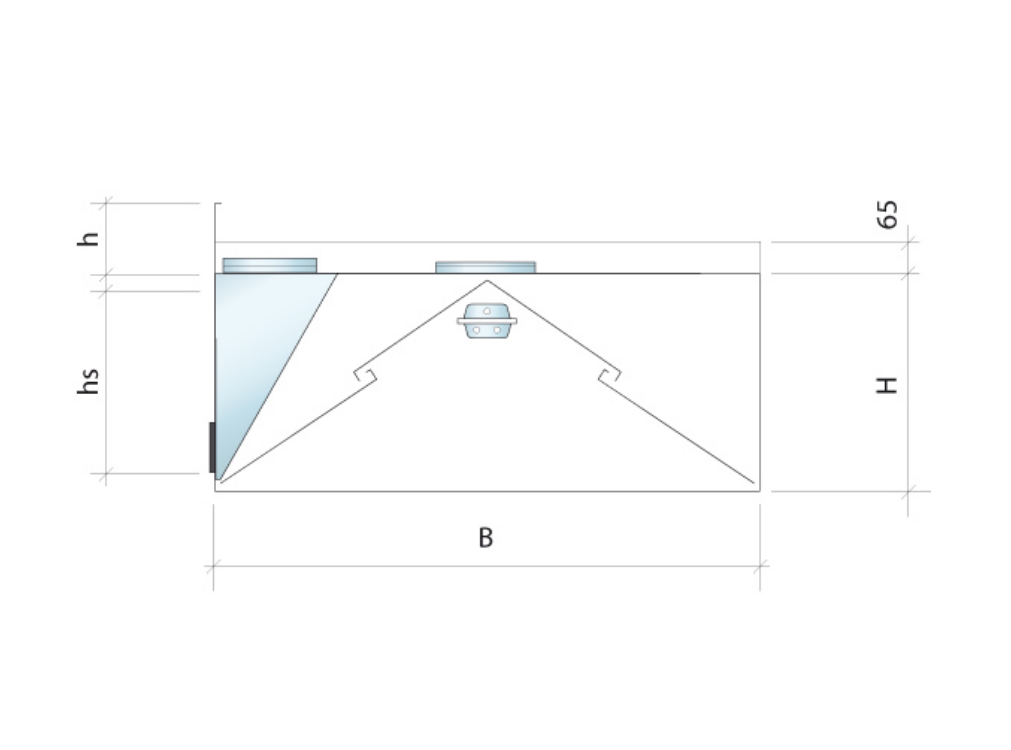

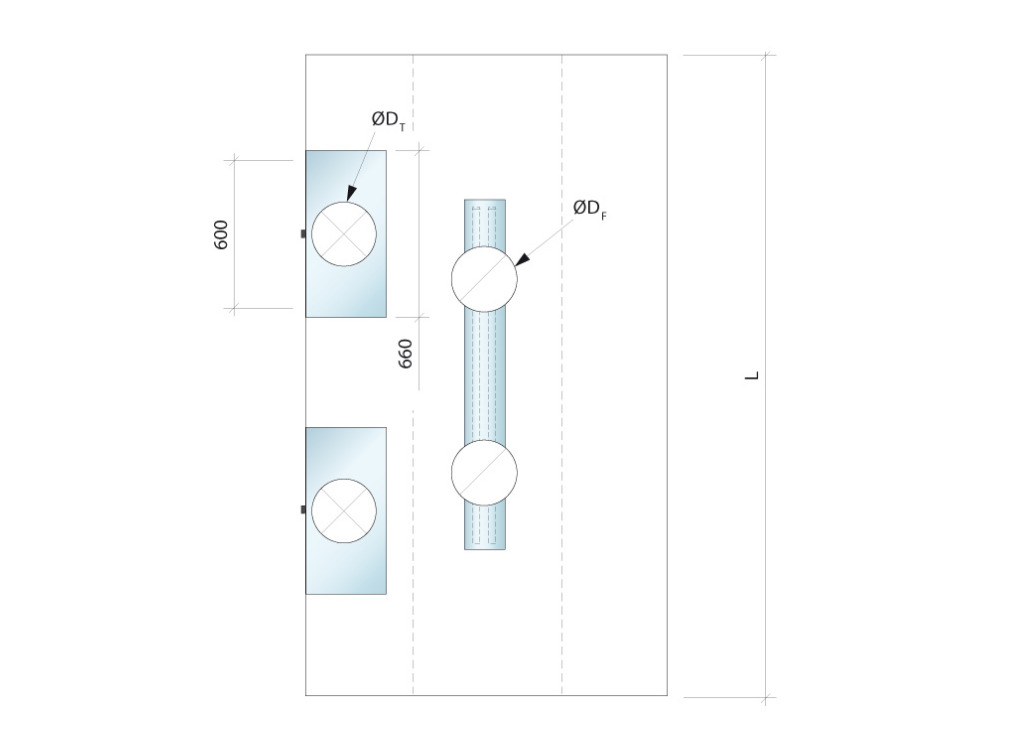

Dimensions
Height of hood H = 550 mm or 350 mm. Depth B = maximum 1600 mm when the height of the
hood is 550 mm and maximum 1300 mm when the height is 350 mm.
The length of the hood may be freely selected. When the length is greater than 3000 mm, the hood is delivered in two or more modules. The connections for supply and exhaust air have spigot connections with rubber ring seals.
h = height of cover
H = height of hood
B = depth of hood
L = length of hood
hs = height of supply air distributor
ØDT = diameter supply air connection
ØDF = diameter exhaust air connection
Exhaust air
The condensation separator is dimensioned for a pressure drop of 10-70 Pa. The table shows suitable diameters ØDF for the exhaust air connection at different exhaust air flows.
| Exhaust air l/s | Exhaust air connection ØDF |
|---|---|
| 0 - 100 | 200 |
| 100 - 150 | 250 |
| 150 - 250 | 315 |
| 250 - 420 | 400 |
Supply air
The table shows how much air that can be supplied per supply air distribution unit. Each air terminal, within its flow range, is delivered set to a static pressure drop of 20 Pa.
| Supply air l/s | Height of hood | Height of distributor hs | Connection ØDT mm |
|---|---|---|---|
| 50 - 110 | 350 | 260 | 200 |
| 50 - 110 | 550 | 260 | 200 |
| 90 - 195 | 550 | 460 | 250 |
Specifications
Specifications
AKT–2600x1200x550–2x250–2x315+350 l/s–390 l/s.
Description text suggestion
Condensation hood AKT, manufactured by Acticon, with sides in brushed stainless steel sheet metal. Supply air and exhaust air, and LED lighting with DALI control.
Supply air and exhaust air connections with damper and pressure tap.
Integrated supply air terminal with adjustable comfort nozzle. Removable condensation separator. Cover from upper edge of hood to room ceiling.
| Length in mm | 2600 |
| Depth in mm | 1200 |
| Height in mm | 550 |
| Supply air connections: number x diameter | 2x250 |
| Exhaust air connections: number x diameter | 2x315 |
| Supply air in l/s | +350 l/s |
| Exhaust air in l/s | 390 l/s |
