Volume hood Eko - forced flow

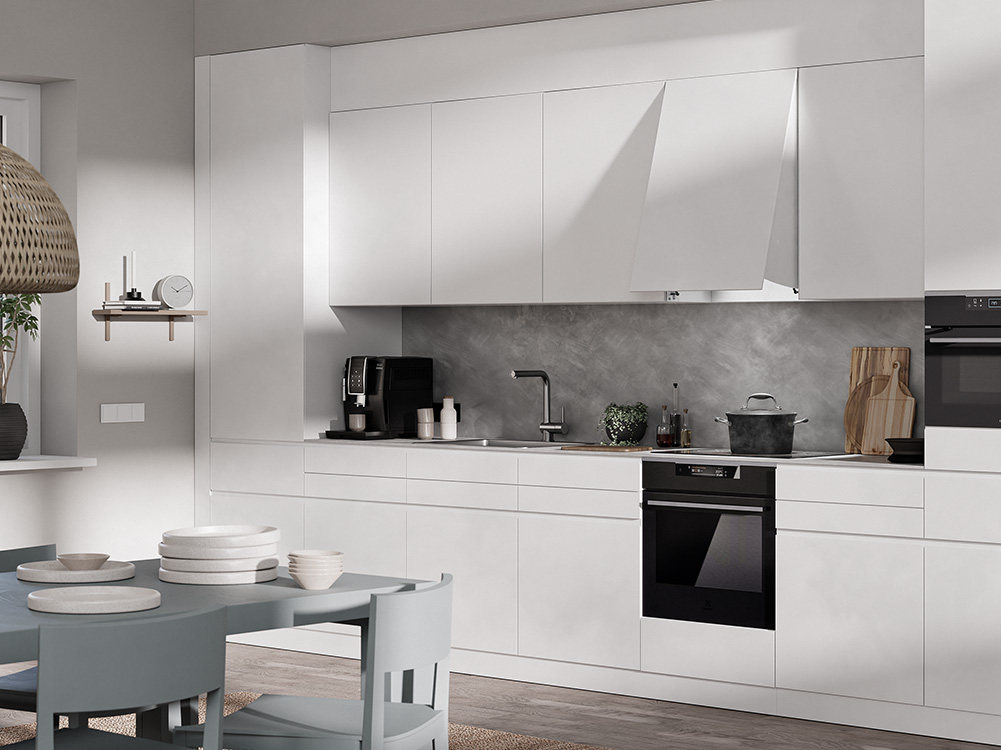

The Eko volume hood has a retractable front hood.
- Fully built in - blends in well with kitchen’s design. 60 cm wide, same depth and height as adjacent cabinets.
- Large volume - energy efficient odour capture even at low flows.
- No fan - silent. Easily connects to existing ventilation system.
- Quick and easy assembly. Only a few attachment points.
- Suits most ventilation systems. (S, F, FX, FT, and FTX systems).
- Easy to lift off the front panel - easy cleaning. Easily accessible smooth surfaces, removable grease filter that can be easily cleaned in a dishwasher.
Description
The Eko volume hood has a retractable front hood. This front hood must be fitted with a front panel that is identical with the upper cabinet doors (not included in our delivery) to ensure it is fully integrated into the kitchen design.
The front hood can be easily lifted off for easy adjustment and cleaning.
Effective extraction of cooking fumes at low air flows.

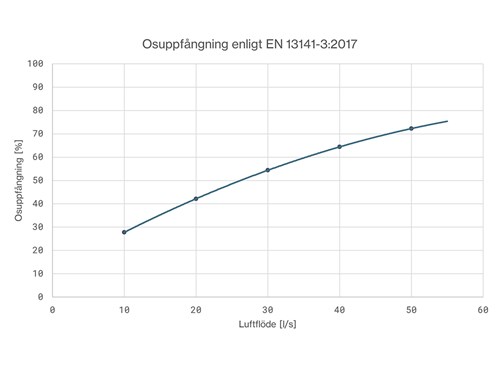

Tests conducted according to EN 13141-3:2017, with the exception that the cooker hood is mounted 500 mm above the hob instead of 600 mm.
Reported flow rates measured at SP according to standard EN 13141-3:2017 with the hood mounted 500 mm above to hob.
Fume extraction
Reported flow rates measured at SP according to old standard EN 13141-3:2004
| Fume extraction | Exhaust air l/s |
|---|---|
| 97% | 20,2 |
| 90% | 15,0 |
| 76,5% | 10,0 |
Dimensions and technical data
Dimensions
Supplied 60 cm in width with the same depth and height as the adjacent upper cabinet. The wooden front of the front hood is full size and is the same height as the other cabinet doors. No extra sections are required.
Standard installation between two upper cabinets. In view of the above, it is important that the volume hood’s dimensions are determined early in the process.
Material
The wall-mounted section is made of white powder-coated zinc-plated sheet,
RAL 9016, 90% gloss. The retractable front hood is made of nickel-free stainless steel.
Grease filters
Large efficient grease filter. Dishwasher safe. Inserted diagonally in the upper part of the cabinet.
Lighting
LED lighting along the entire width of the volume hood.
Built-in power switch. Connection to wall-mounted power outlet with plug-in transformer.
Vent
The flow is regulated by a mechanical damper.
Extracted hood creates forced flow, closed hood provides normal flow.
Control vent size 125 mm as standard.
Wall socket
The appropriate location of the wall socket is in or above the nearest wall cabinet. Connection to power outlet with plug-in transformer.
