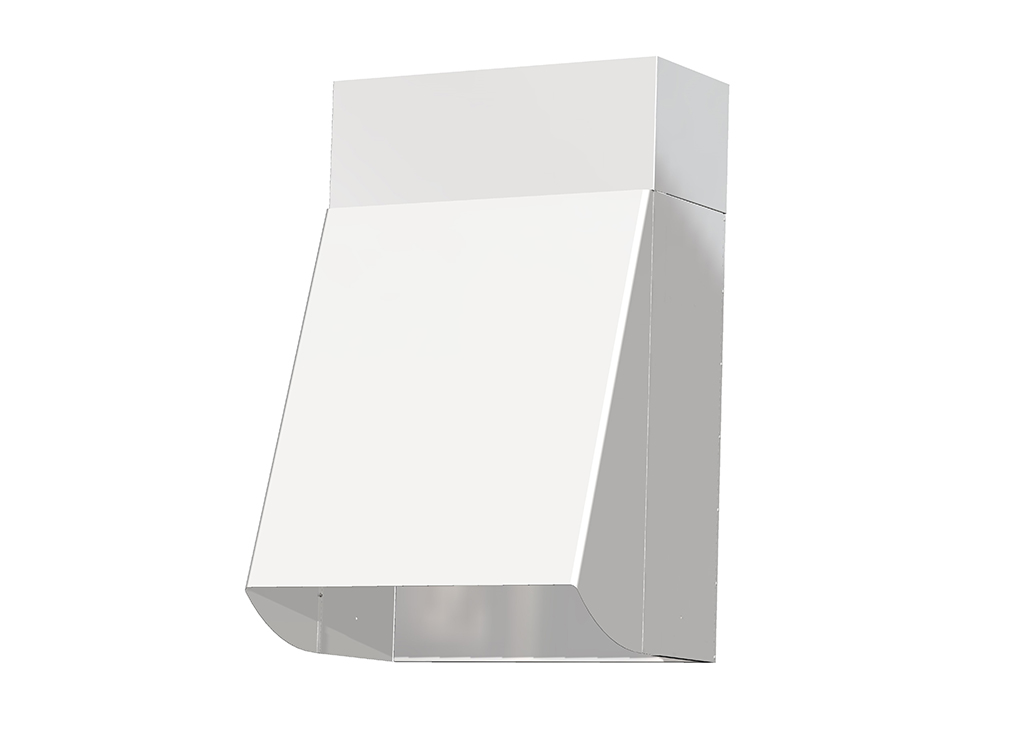

Universal volume hood

Quiet and energy-efficient odour capture

  • Large volume and energy-efficient odour capture
    Efficient odour capture even at low flows
  • No fan - silent
    Easily connects to existing ventilation system
  • Easily installed in renovation and new construction projects
    Fitted only with control vent
  • Suits most ventilation systems
    (S, F, FX, FT, and FTX systems)
  • Removable front hood for service and easy cleaning
  • Covers the entire cabinet height
  • Requires no top cabinet
  • No moving parts

A new generation of well-designed cooker hoods.

The Universal volume hood is a low-flow, high-volume hood. It consists of a wall-mounted part and a removable front hood, which facilitates installation and adjustment. Supplied only with control vent. Suitable for mounting between two wall cabinets or suspended.
Considerably easier to connect the duct connection.

Effective odour capture at low flows:

87.5% at 20.2 l/s

77.6% at 15 l/s



Sweden Green Building Council

Sunda Hus

Byggvarubedömningen

Dimensions

Manufactured according to cabinet frame dimensions. Standardised dimensions, examples:

Vedum - 600 x 850 x 302 mm
Marbodal - 600 x 864 x 330 mm
Ballingslöv - 600 x 850 x 312 mm

Material

White powder-coated sheet, RAL 9016, 90% gloss.

Grease filters

Large efficient grease filter. Dishwasher safe. Inserted diagonally in the upper part of the cabinet.

Lighting

LED lighting along the entire width of the volume hood. Built-in power switch.

Connection to wall-mounted power outlet with plug-in transformer.

Vent

Control valve size 125 mm. as standard.

Wall socket

The appropriate location of the wall socket is in or above the nearest wall cabinet.

Connection to power outlet with plug-in transformer.
