Customised solutions
In close cooperation with our customers, we have contributed to the modernisation of ventilation in many older houses. The challenge has been to combine healthy ventilation with cost-effective installation, without major changes to the property. Because older homes can be very different, there has often been a need for customised solutions. The basic principle is that the air chamber is installed in conjunction with the existing radiator, which is thus used for efficient preheating of the outside air.

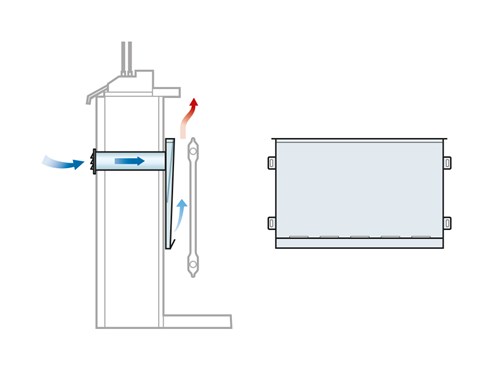

Air intake above the radiator, vertical wall.

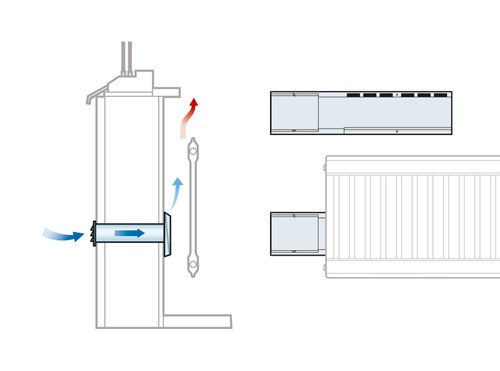

Air intake above the radiator, façade wall.

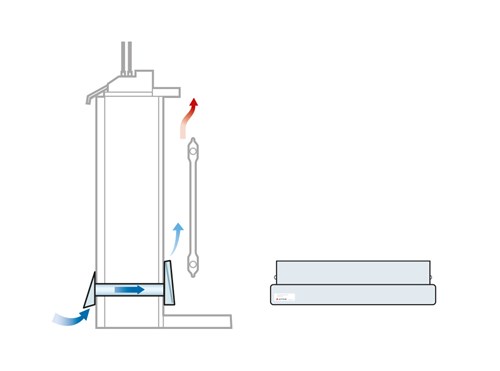

Air intake below the radiator.
Location of air intake
Easy-Vent for existing radiators is available in three basic models suitable for all panel and section radiators. The choice of model is determined where the conduit for the air intake can most easily be made; above, below, behind or to the side of the radiator. If there is an existing slotted vent, it can be used as an air intake and connected to the air chamber.
If new radiators are to be installed, the Easy-Vent air chamber is used for new production.

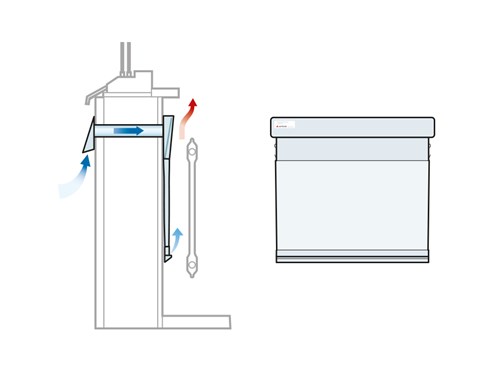

Air intake to the side of the radiator.

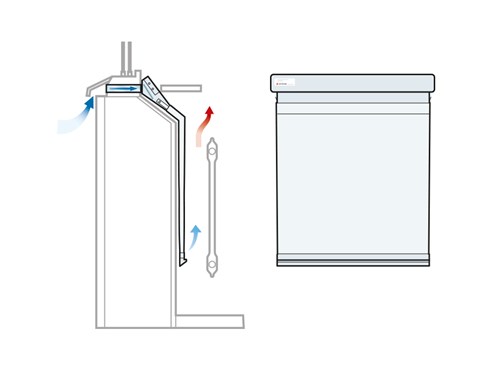

Air intake behind the radiator.

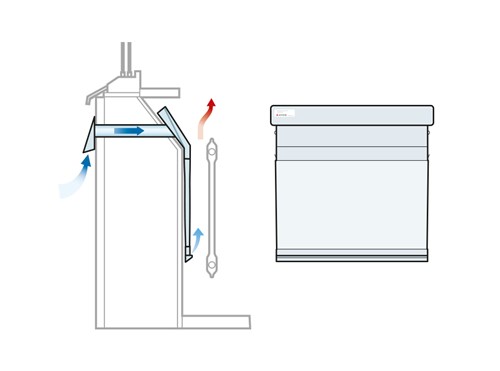

Existing window frame slot vent.
