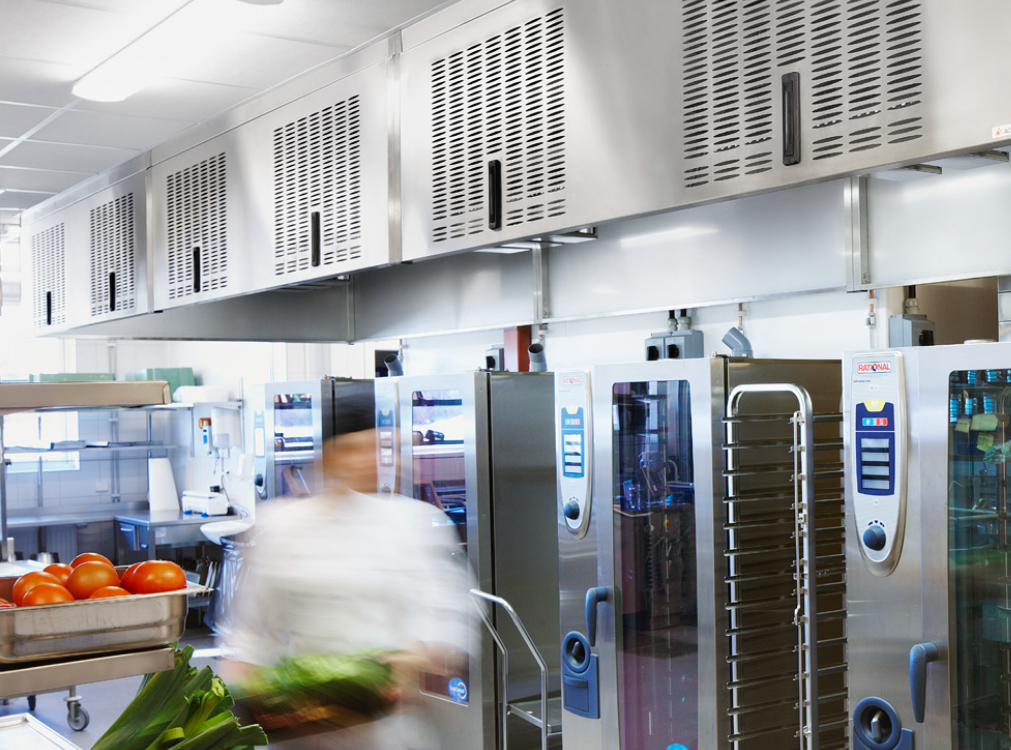

Supply air hood Evac-T

The hood lets fresh air into the kitchen via the supply air terminal. Part of the air can be directed in the desired direction with the help of an adjustable comfort nozzle at the front of the air terminal. Contaminated air is drawn up and retained in the control air, which also prevent leakage of contaminated air.
Evac-T is delivered in separate parts for assembly at the workplace. The “flat pack” delivery method facilitates safe and cost-effective transport and easy handling at the workplace.

The hood is made of brushed stainless steel sheet metal or layer-glued laminated glass (3+3 mm). The standard height is 350 or 550 mm excluding the cover. Other dimensions may be freely selected. The sides of the hood are delivered in finished sections up to 3 metres in
length, for easy installation. The hood is supplied with a sealed cassette top in anodised aluminium or stainless steel sheet metal.

The external lighting fixture is approved to protection class IP 65, which means that it is dust-tight and can be exposed to water. The fixture is equipped with energy-saving LED lighting with DALI control (14, 28 and 49 W). The colour temperature of the fluorescent tube is 3000 K, warm-white. The length of the fixture is approximately 700 mm (14 W), 1300 mm (28W) or 1600 mm (49 W)

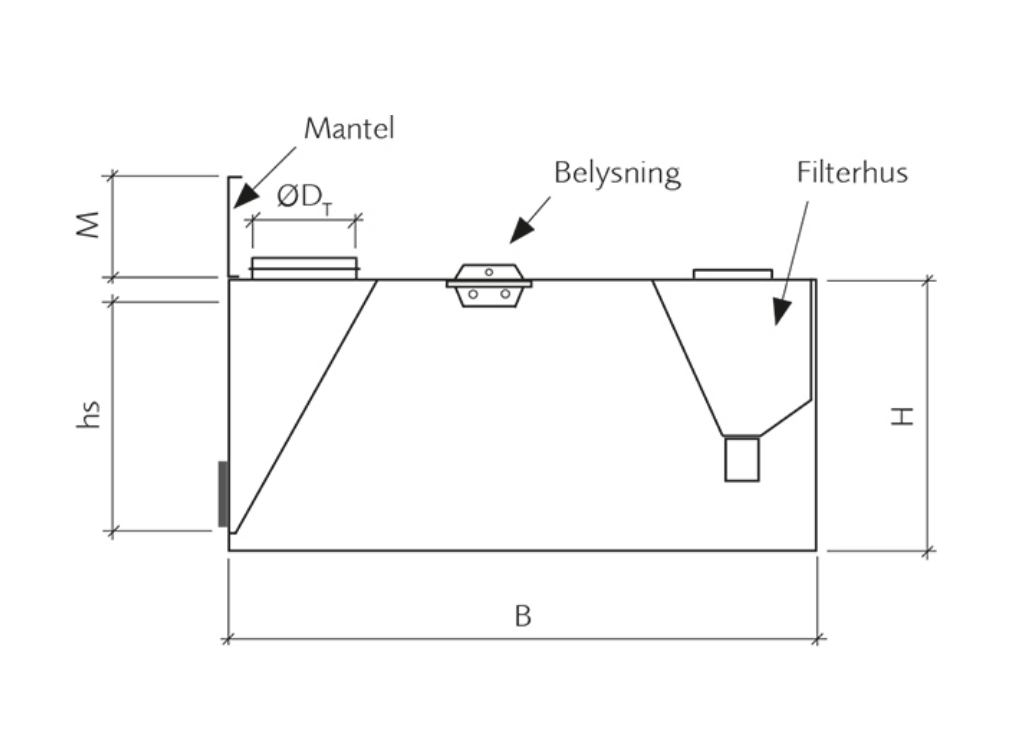

Height of hood H = 550 or 350 mm.

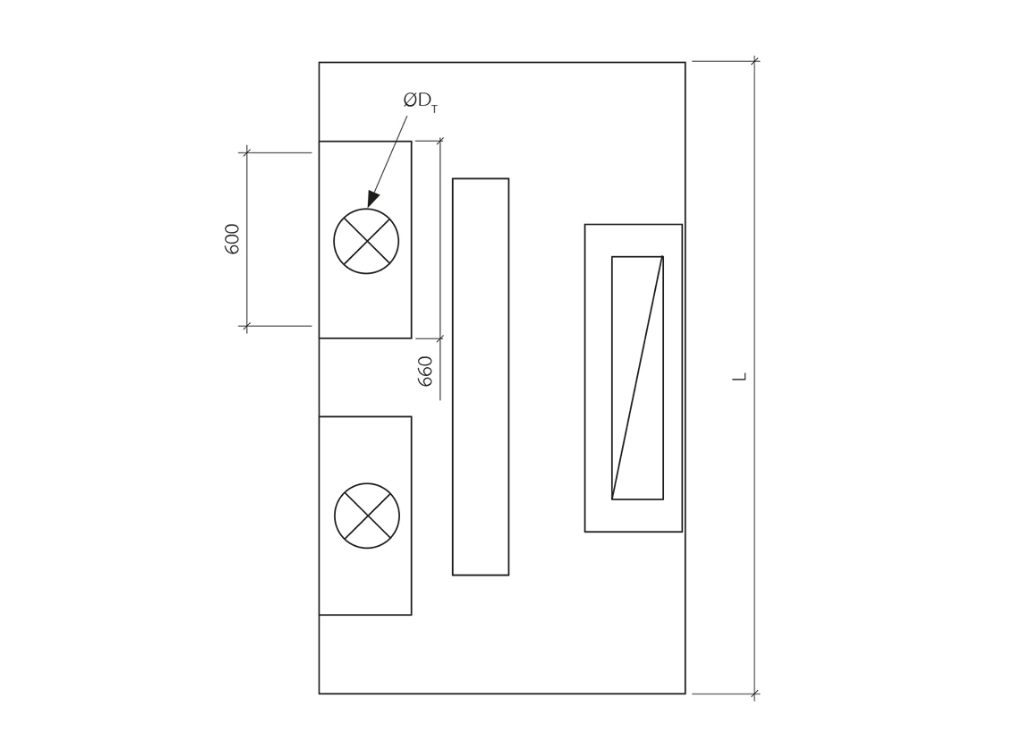

Length and depth: optional. Height of cover M = optional .The supply air connections have spigot connections with rubber ring seals.

Supply air: The table shows how much air that can be supplied per supply air distribution unit. Each air terminal, within its flow range, is delivered set to a static pressure drop of 20 Pa.

Supply air hood Evac-T-R-E-3-2100x1200x550-200-2x250+300 l/s-400 l/s

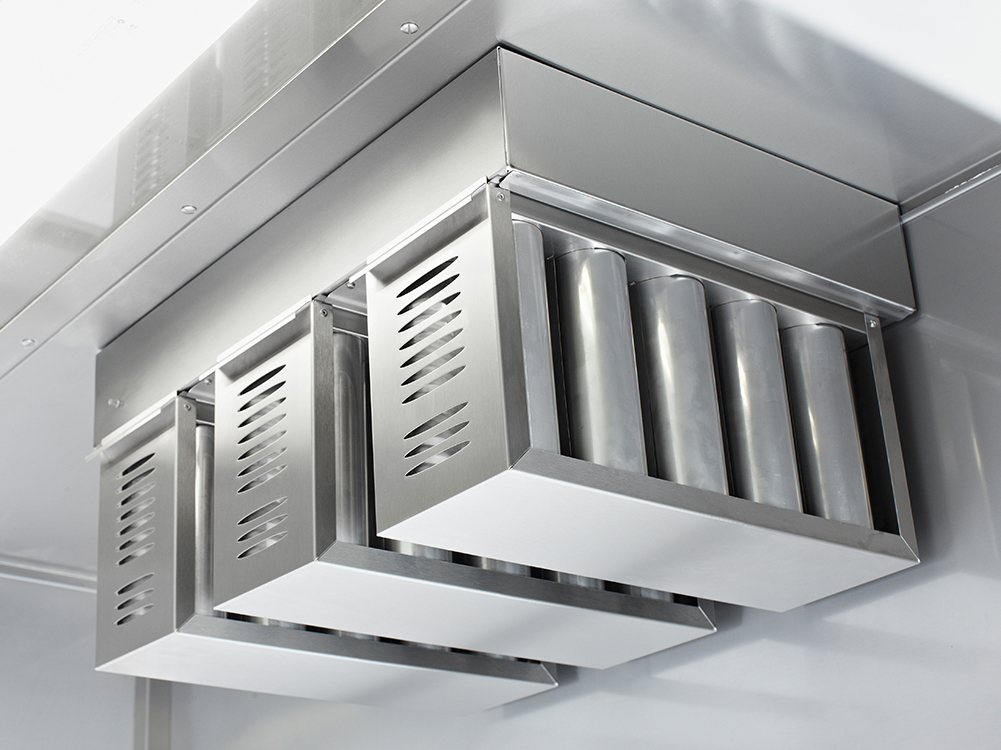

Supply air hood Evac-T, manufactured by Acticon, withthree sides in stainless steel sheet metal. Top in anodised aluminium. The hood is equipped with LED lighting in protection class IP 65 and integrated supply air terminals. FHV filter housing with wire mesh filter.
