Volume hood Eko - constant flow

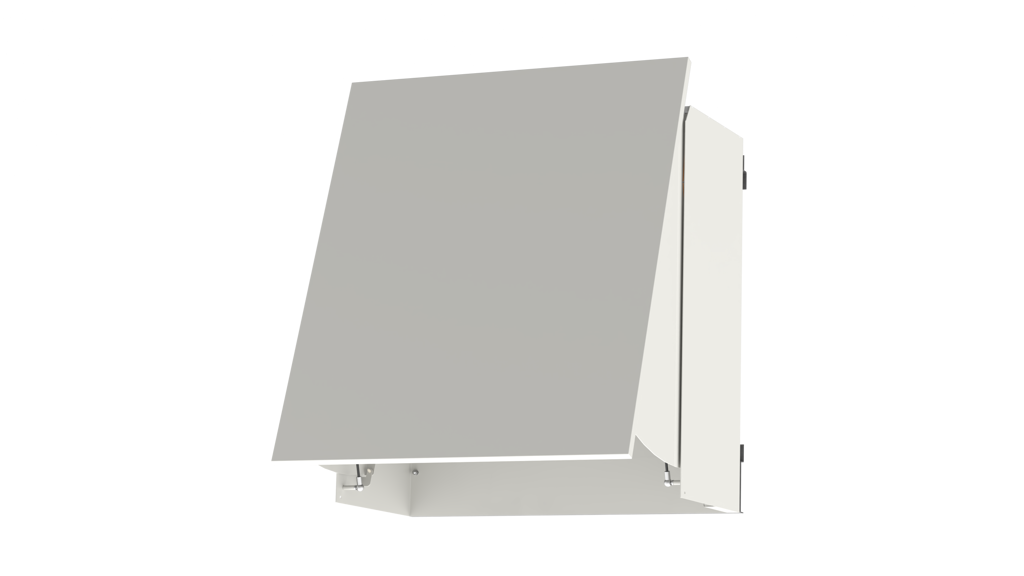

The Eko volume hood has a retractable front hood.
- Fully built in - blends in well with kitchen’s design. 60 cm wide, same depth and height as adjacent cabinets
- Large volume - energy efficient odour capture even at low flows
- No fan - silent. Easily connects to existing ventilation system
- Quick and easy assembly. Only a few attachment points
- Suits most ventilation systems. (S, F, FX, FT, and FTX systems)
- Easy to lift off the front panel - easy cleaning. Easily accessible smooth surfaces, removable grease filter that can be easily cleaned in a dishwasher
The Eko volume hood features a retractable front panel. This front panel must be fitted with a front cover that matches the upper cabinet doors (not included in our delivery) to ensure full integration with the kitchen design.
The front panel can be easily removed for adjustment and cleaning.
Dimensions
Supplied 60 cm in width, with the same depth and height as the adjacent upper cabinet. The wooden front of the retractable hood is full-size and matches the height of the other cabinet doors. No additional sections are required.
Standard installation is between two upper cabinets. For this reason, it is important that the volume hood’s dimensions are determined early in the planning process.
Material
The wall-mounted section is made of white powder-coated, zinc-plated sheet metal, RAL 9016, 90% gloss. The retractable front hood is made of nickel-free stainless steel.
Grease filters
Large, efficient grease filter. Dishwasher safe. Inserted diagonally in the upper part of the cabinet.
Lighting
LED lighting runs along the entire width of the volume hood.
Built-in power switch. Connected to a wall-mounted power outlet via a plug-in transformer.
Vent
Airflow is regulated by a mechanical damper.
The extracted hood creates forced flow, while the closed hood provides normal flow.
Standard control vent size: 125 mm.
Wall socket
The wall socket should be positioned in or above the nearest wall cabinet. Connection to the power outlet is via a plug-in transformer.
